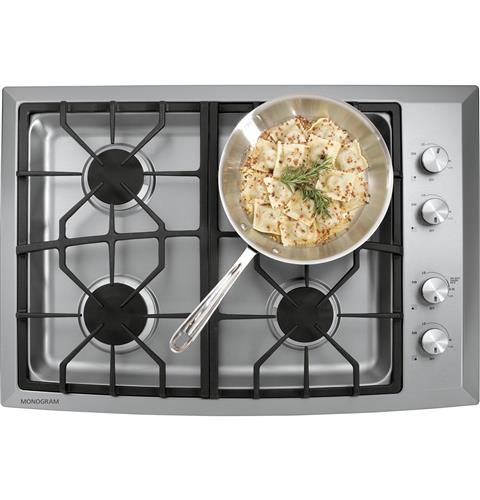

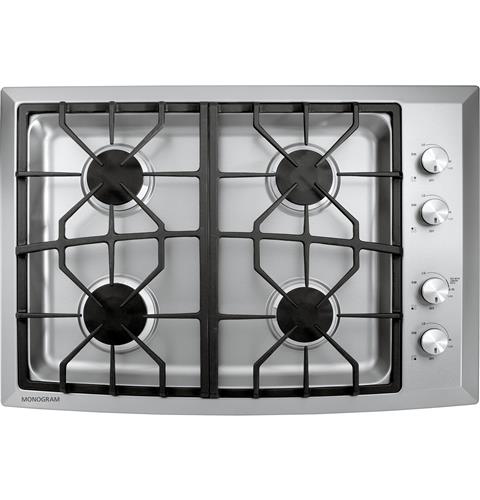

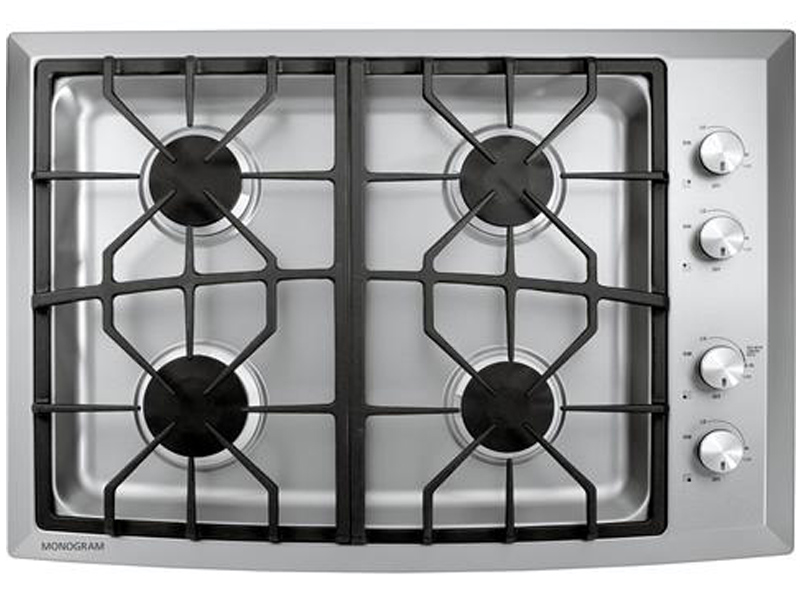

30" Monogram Gas Cooktop - ZGU384NSMSS

SKU : ZGU384NSMSS


Literature

Features

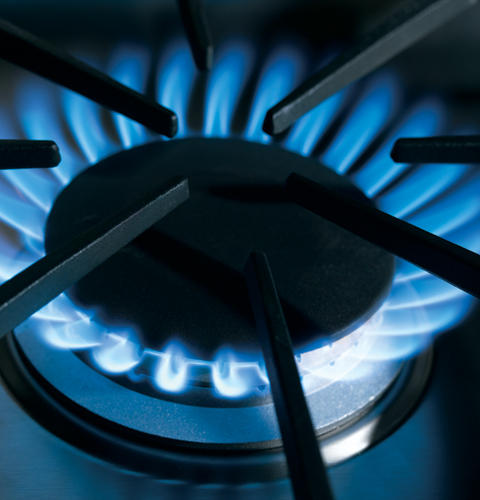

Dual-flame stacked burners

Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

High-output cooking power

Delivered by an 18,000 BTU burner, totaling 50,000 BTUs

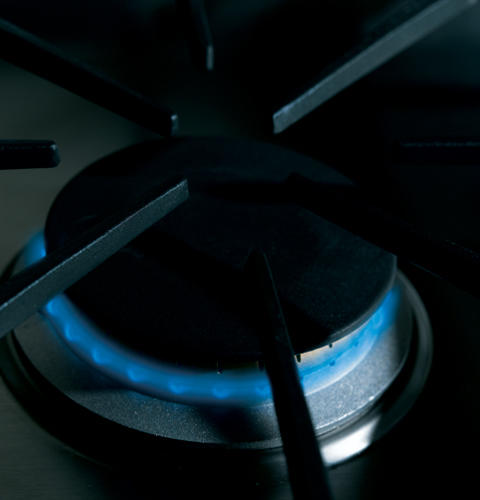

Silent, precise simmering

Delivers a consistent 140F temperature without cycling on and off; no simmer plate required

Electronic ignition

Ensures a continuous flame and reignites automatically if accidentally extinguished

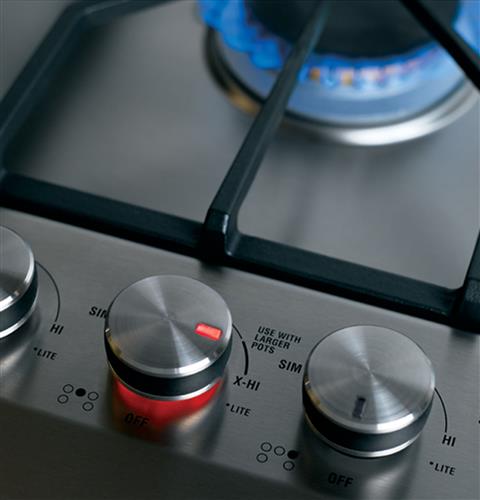

Hand-machined, stainless steel knob controls

Rotate with smooth precision; A red indicator light embedded in each knob makes it easy to view and select heat settings

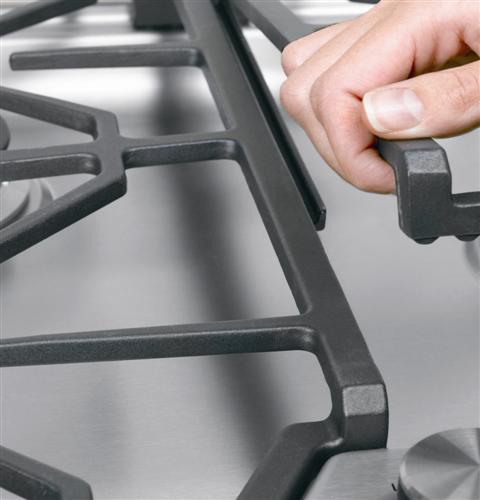

Interlocking, continuous grates

Create a steady surface for cookware and are integrated into the cooktop for a clean, finished appearance



Inputs & Outputs
Cooktop Burner Type4 Sealed
Cooktop SurfaceStainless Steel
Ignition SystemElectronic
Automatic Re-IgnitionYes
140 Deg. Simmer Burner4
Configuration4 Sealed Cooktop Burners
Dual Flame Stacked Burners4
Control LocationRight Side
Burner Indicator LightYes - in Knob
Cooktop Burner Grate FeaturesContinuous Grates
Cooktop Burner Grate MaterialCast-Iron; Porcelainized
Fuel TypeNatural Gas (factory set)
Tactile Grip KnobsYes
Valves (Degree of Turn)250
Appearance
Color AppearanceStainless Steel
Control KnobsStainless Steel
Weights & Dimensions
Approximate Shipping Weight54.0
Cabinet Width30.0
Cutout Dimensions (Width x Depth) (In.)28-1/2 x 19-5/8
Net Weight50.0
Overall Depth21.625
Overall Height3.75
Overall Width30.75
Power / Ratings
Burner BTU Ratings (000's/BTU) - LP Gas(1) 15.0; (3) 9.1
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 18.0; (1) 12.0; (2) 10.0
Volts/Hertz/Amps120V; 60Hz; 5.0A
Accessories
Conversion KitIncluded - Nat. Gas to LP
High Altitude KitWB49X10090
Warranty
Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
