Panasonic Mirrorless Camera For True Creative Vision - DCGX9MK
You may also like
For True Creative Vision
When you look through the Tiltable LVF of your LUMIX GX9, the world is completely yours. Enjoy 20.3 Mpx resolution, monochrome effects, and 4K PHOTO mode featuring 30-fps shooting. This highly compact, slim camera is always at the ready to turn your photographic imagination into incredible shots.
20.3 Mpx pixel-perfect photos

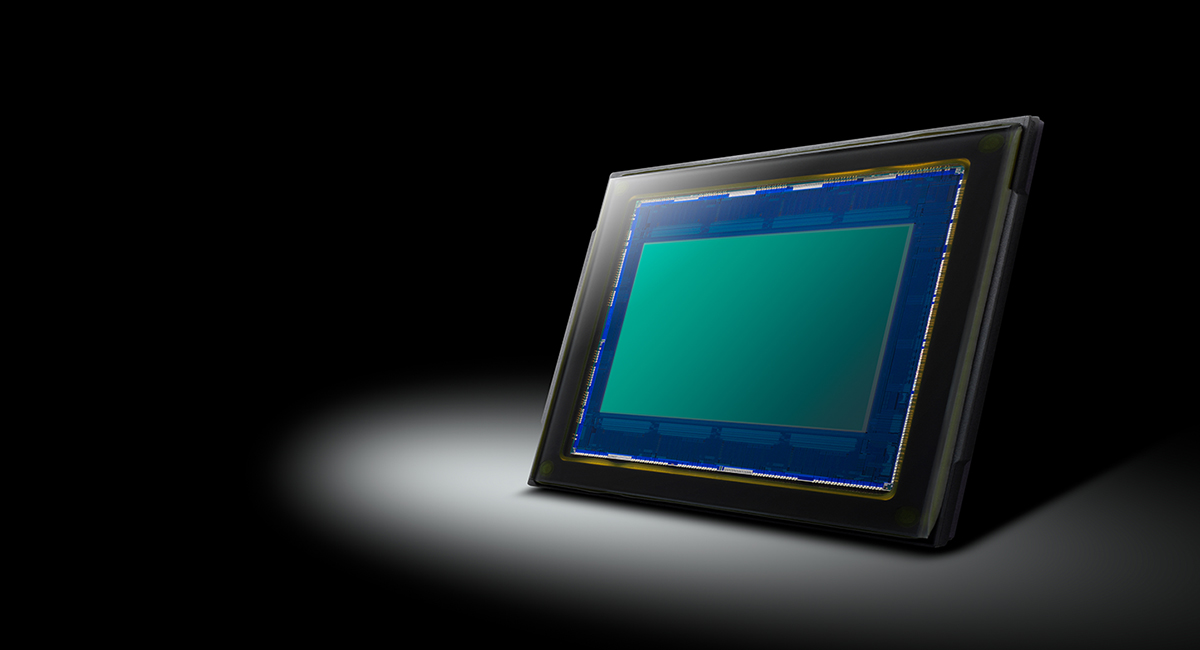

The LUMIX GX9 packs a real punch with its high performance Digital Live MOS sensor sporting a whopping 20.3-megapixel to achieve uncompromising picture quality. Together with the removal of the low-pass filter from the sensor, you can confidently capture the sharpest ever imagery with a high dynamic range and artifact-free. The LUMIX GX9 is a camera of beauty created by you and crafted by Panasonic engineering.
Venus Engine - Impressive colour reproduction
Shoot high-quality, true-to-life images with excellent resolution, high contrast, and impressive colour reproduction. Combining the Digital Live MOS Sensor and Venus Engine renders clear images with minimum noise even in low-light situations and maximum sensitivity (ISO 25600).
Intuitive viewfinder control
The Tiltable LVF (Live View Finder) is perfect for framing your shot and capturing every detail you require, even from a low-angle. It boasts 2,760K-dot equivalent high resolution and approximately 100% colour reproduction for high visibility under any circumstances. The LUMIX GX9 also provides an intuitive level of operation. The front/rear dials control the main aperture and shutter speed settings, for easy, no-look white balance and ISO adjustments. In addition, a dedicated dial makes it easy to adjust exposure compensation.
1240K-dot Tiltable Monitor
The large 3.0-inch, approximately 1240K-dot static-type touch monitor tilts upward by 80 degrees and downward by 45 degrees. It enables dynamic framing for artistic low-angle shots, like when shooting at nearly ground level, and is highly practical for high-angle shots, like when you need to shoot over the heads of people at a parade or a party.

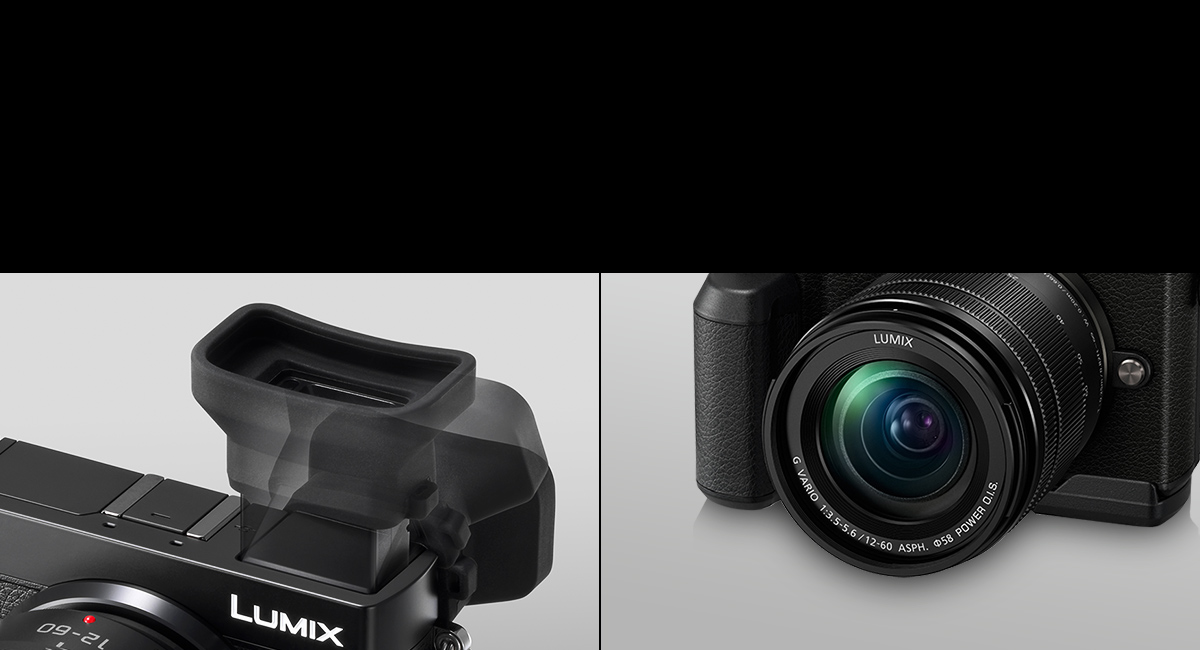

Optional accessories
These options have been specially designed to enhance the LUMIX GX9 operation. The DMW-EC5 Eyecup makes the image on the LVF (Live View Finder) easier to see by blocking unwanted light. It snugly fits the eye for greater viewing comfort. The DMW-HGR2 Hand Grip was crafted to give the LUMIX GX9 a more stable hold. The generous use of aluminum and a carefully machined grip add an elegant design that ideally matches the camera.
On the move —5-axis Dual I.S. and 5-axis Body I.S.
Ideal for capturing life on the go, the LUMIX GX9 integrates a 5-axis Dual I.S. (Image Stabilizer), combining body and lens stabilization to gain more powerful handshake correction. The 5-axis Dual I.S. works in both photo and motion picture recording, including 4K video from wide to telephoto. It is also beneficial even in low light situations, and makes it possible to use a 4-stop slower shutter speed*. The astonishing power of the 5-axis Body I.S. corrects shake for all lenses, even those not equipped with O.I.S. * Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60 mm(35 mm camera equivalent f=120 mm), when H-FS12060 is used.
Fast AF with DFD Technology
Panasonic's DFD (Depth From Defocus) technology* instantly calculates the distance to the subject by evaluating two images with different sharpness levels, and achieves ultra-high-speed AF. Also, the LUMIX GX9 has tuned AF precision to follow moving objects and shoot in dim lighting with more precise AF performance. This system results in faster AF speeds up to approximately 0.07 seconds** and a burst shooting speed with AFC of 6 frames per second. A 9 frames per second burst shooting with AFS is also possible. * Contrast AF with DFD technology works only with Panasonic Micro Four Thirds lenses. ** In AFS, at wide-end with H-FS14140 (CIPA).
Functions for night-time shooting
Live View Boost The display is brightened by lowering the frame rate and increasing the gain. This lets you shoot while framing, even in extremely dark situations. MF Assist 20x The MF Assist display has been enlarged up to 20x. Accurate focusing is possible even on tiny objects like stars.
Monochrome options
L. Monochrome D is a new monochrome mode in Photo Style that features even finer gradations. Along with Monochrome and L. Monochrome, it gives you the dynamic control to help take black-and-white expressiveness to the next level. In addition, each of these modes can be combined with Grain Effect at Low, Standard, or High level. When you have the appeal of monochrome film at your fingertips with rich black tones and grainy textures, even ordinary scenes can become something remarkable.
Remote Control — Bluetooth 4.2 & Wi-Fi®
Bluetooth 4.2 (Low Energy) enables shutter release and video record Start / Stop without physically touching the camera. It also enables full-time connection between camera and smartphone with low energy consumption. After shooting, it automatically switches to Wi-Fi connection, transferring data to your smartphone. You can use 'Panasonic Image App' for Android / iOS to control shutter and other settings. ・The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®. ・The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Never Miss the Perfect Moment — 4K PHOTO
Our 4K PHOTO feature lets you capture the perfect moment by selecting a frame from a video sequence (shot at 30 frames per second) in camera, and saving it as an individual high-res image with approximately 8-megapixel resolution. Simply shoot, select and save, to make those fleeting moments unmissable.
4K PHOTO Auto Marking
Choose your best shots, whether it's a bird taking flight, a balloon bursting, or a person glancing backward, the camera detects the motion or your subject's face and automatically sets a marker. When selecting shots, you can quickly skip to that sequence.
4K PHOTO Sequence Composition
Catch the trajectory of a dynamic action in a single photo then simply choose the frames that you want from the 4K PHOTO file to compose them into an action-packed shot.
4K Video — 4x the pixel count of FHD
Whether you are watching movies or editing videos, 4K delivers a far more intense viewing experience than you have seen before. Its native resolution of 3,840 x 2,160 pixels is 4x larger than Full HD, resulting in a much higher level of detail. ・When recording videos in 4K, use a card rated as UHS Speed Class 3.
Type | |
---|---|
Type | Digital Single Lens Mirrorless camera |
Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) |
Lens mount | Micro Four Thirds mount |
Image Sensor | |
Type | Live MOS Sensor |
Total pixels | 21.77 Megapixels |
Camera effective pixels | 20.30 Megapixels |
Colour filter | Primary colour filter |
Dust reduction system | Supersonic wave filter |
Image Stabilization System | |
IMAGE STABILIZATION SYSTEM | Image sensor shift type (5-axis / 4-stop*), Dual I.S. compatible * Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60 mm (35 mm camera equivalent f=12 0mm), when H-FS12060 is used.] |
RECORDING SYSTEM | |
Recording file format - Still image | JPEG (DCF, Exif 2.31), RAW |
Recording file format - 4K PHOTO | MP4 |
Recording file format - Motion picture | AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch) MP4: H.264/MPEG-4 AVC (Audio format: AAC (2ch) |
Aspect ratio | 4:3, 3:2, 16:9, 1:1 |
Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard |
Colour Space | sRGB, AdobeRGB |
File size (Pixels) - Still Image - 4:3 | 5184 x 3888 (L) / 3712 x 2784 (M) / 2624 x 1968 (S) / 3328 x 2496 (4K PHOTO) |
File size (Pixels) - Still Image - 3:2 | 5184 x 3456 (L) / 3712 x 2480 (M) / 2624 x 1752 (S) / 3504 x 2336 (4K PHOTO) |
File size (Pixels) - Still Image - 16:9 | 5184 x 2920 (L) / 3840 x 2160 (M) / 1920 x 1080 (S) / 3840 x 2160 (4K PHOTO) |
File size (Pixels) - Still Image - 1:1 | 3888 x 3888 (L) / 2784 x 2784 (M) / 1968 x 1968 (S) / 2880 x 2880 (4K PHOTO) |
File size (Pixels) - Motion picture** - MP4**[4K] 3840 x 2160 | 4K/30p: 100Mbps 4K/24p: 100Mbps |
File size (Pixels) - Motion picture** - MP4**[Full HD] 1920 x 1080 | FHD/60p: 28Mbps FHD/30p: 20Mbps |
File size (Pixels) - Motion picture** - MP4**[HD] 1280 x 720 | HD/30p: 10Mbps |
File size (Pixels) - Motion picture** - AVCHD**[Full HD] 1920x1080 | FHD/60p: 28Mbps, 60p recording FHD/60i: 17Mbps, 60i recording FHD/30p: 24Mbps, 60i recording (sensor output is 30fps) FHD/24p: 24Mbps, 24p recording |
Continuous recordable time (Motion picture)** | AVCHD [FHD/60p] Approx. 90 min (rear monitor), 80 min (LVF) with H-FS12032 / H-FS12060 AVCHD [FHD/60i] Approx. 90 min (rear monitor), 80 min (LVF) with H-FS12032 / H-FS12060 MP4 [4K/30p] Approx. 70 min (rear monitor), 70 min (LVF) with H-FS12032 / H-FS12060 |
Actual recordable time (Motion picture)** | AVCHD [FHD/60p] Approx. 45 min (rear monitor), 40 min (LVF) with H-FS12032 / H-FS12060 AVCHD [FHD/60i] Approx. 45 min (rear monitor), 40 min (LVF) with H-FS12032 / H-FS12060 MP4 [4K/30p] Approx. 35 min (rear monitor), 35 min (LVF) with H-FS12032 / H-FS12060 |
WIRELESS | |
Wi-fi | IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode |
Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
QR code connection / Password-less connection | Yes / Yes (ON / OFF selectable) |
Viewfinder | |
Type | LCD Live View Finder (2,760K dots equivalent), Tiltable |
Field of view | Approx. 100% |
Magnification | Approx. 1.39x / 0.7x (35 mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 |
Eye point | Approx. 17.5 mm from eyepiece lens |
Diopter adjustment | -4.0 - +3.0 (dpt) |
Eye sensor | Yes |
Focus | |
Type | Contrast AF system |
DFD technology | Yes |
Post Focus | Yes |
Focus Stacking | Yes |
Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
AF mode | Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint (Full area touch is available) |
AF detective range | EV -4 - 18 (ISO100 equivalent) |
Starlight AF | Yes |
AF assist lamp | Yes |
AF lock | Yes (AF/AE LOCK button) |
Others | One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter |
Exposure Control | |
Light metering system | 1728-zone multi-pattern sensing system |
Light metering mode | Multiple / Center Weighted / Spot |
Metering range | EV 0 - 18 (F2.0 lens, ISO100 equivalent) |
Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
ISO sensitivity (Standard Output Sensitivity) | Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step) |
Exposure compensation | 1/3 EV step, ±5EV (when set with the menu) (±3 EV for motion picture), ±3EV (when set with the dial) |
AE lock | Yes (AF/AE LOCK button) |
White Balance | |
White balance | AWB / AWBc / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 |
White balance adjustment | Blue/Amber bias, Magenta/Green bias |
Colour temperature setting | 2500-10000K in 100K |
Shutter | |
Type | Focal-plane shutter |
Shutter speed | Still image: Time* (Max. 30 minutes), 1/4,000 - 60*Bulb mode is possible with the "Image App" remote control via Bluetooth. Electronic shutter: 1/16,000 - 1 Motion picture: 1/16,000 - 1/25 |
Self timer | 10sec, 3 images / 2sec / 10sec |
BRACKET | |
AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
Aperture Bracket | 3, 5 or all positions in 1 EV step |
Focus Bracket | 1 to 999 images, focus steps can be set in 10 levels |
White balance bracket | 3 images in blue/amber axis or in magenta/green axis |
PANORAMA SHOT | |
Panorama Shot | Yes (Standard / Wide) |
BURST SHOOTING | |
Burst speed | [Mechanical shutter] AFS/MF: H: 9 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-FS12032 is used. AFF/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-FS12032 is used. [Electronic shutter] AFS/MF: H: 9 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFF/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
Number of recordable images | More than 30 images (when there are RAW files with the particular speed) More than 100 images (when there are no RAW files) (depending on memory card type, aspect, picture size and compression) |
4K PHOTO** | |
Burst speed | 30 frames/sec |
Exif information | Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.) |
Marking function | Auto / Face Priority / Motion Priority / Off (Manual) (in 4K Burst mode and 4K Burst (S/S) mode) |
Loop rec function | Yes (in 4K Burst (S/S) mode) |
TIME LAPSE SHOT | |
Time Lapse Shot | Yes |
STOP MOTION ANIMATION | |
STOP MOTION ANIMATION | Yes |
Flash | |
Flash type | TTL Built-in-Flash, GN6.0 equivalent (ISO200 ・m) / GN4.2 equivalent (ISO100 ・m) (Reference), Built-in Pop-up |
Flash Mode | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off (* For iA, iA+ only) |
Synchronization speed | Less than 1/200 second |
Flash output adjustment | 1/3EV step ±3EV |
Flash synchronization | 1st. Curtain Sync., 2nd Curtain Sync. |
Synchronization for flash dimming and exposure compensation | Yes |
Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
SILENT MODE | |
SILENT MODE | Yes |
Rear monitor | |
Type | TFT LCD monitor with static touch control, Tiltable monitor |
Monitor size | 3.0-inch (7.5cm) / 3:2 aspect |
Pixels | Approx. 1,240K dots |
Filed of view | Approx. 100% |
Monitor adjustment | Brightness, Contrast, Saturation, Red Tint, Blue Tint |
LIVE VIEW | |
Digital zoom | 2x, 4x |
Extra Tele Conversion | Still image: Max. 2x Motion picture: 2.7x (FHD), 4.0x (HD) |
Other functions | Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra Pattern (Still image / motion picture) |
DIRECTION DETECTION FUNCTION | |
DIRECTION DETECTION FUNCTION | Yes |
IMAGE PROTECTION / DELETE | |
Protection | Single / Multi or Cancel |
Delete | Single / Multi / All / Except Rating |
Direct Print | PictBridge compatible |
Interface | |
USB | USB 2.0 Micro-B |
HDMI*** | microHDMI TypeD / VIERA Link Video: Auto / 4K / 1080p / 1080i / 720p / 480p Audio: Stereo |
Audio video output | No |
Microphone | Stereo, Wind Noise Canceller: OFF / Standard / High |
Speaker | Monaural |
LANGUAGE | |
OSD language | Japanese, English, German, French, Italian, Spanish, Portuguese, Chinese (Traditional) |
General | |
POWER - Battery | Li-ion Battery Pack (7.2V, 1025mAh, 7.4Wh) (Included) USB power charging |
DIMENSIONS / WEIGHT - Dimensions (W x H x D) | 124 x 72.1 x 46.8 mm / 4.88 x 2.83 x 1.84 inch (excluding protrusions) |
DIMENSIONS / WEIGHT - Weight | Approx. 450g / 0.99 lb (SD card, Battery, Body) Approx. 407g / 0.90 lb (Body only) Approx. 517g / 1.14 lb (SD card, Battery, H-FS12032 lens included) Approx. 660g / 1.46 lb (SD card, Battery, H-FS12060 lens included) |
OPERATING ENVIRONMENT - Operating temperature | 0°C to 40°C (32°F to 104°F) |
OPERATING ENVIRONMENT - Operating humidity | 10% RH to 80% RH |
STANDARD ACCESSORIES - Software | ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO is available for download at Panasonic website using computer connected to the Internet. http://panasonic.jp/support/global/cs/soft/download/d_pfs10ae.html (For Windows) ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) |
STANDARD ACCESSORIES - Standard accessories | DC-GX9M Kit Battery Pack, AC Adaptor, USB Connection Cable, Hot Shoe Cover, Shoulder Strap, Body Cap, Lens Cap, Lens Hood, Lens Rear Cap ・ The DC-GX9 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
INTERCHANGEABLE LENS-1 | |
Lens Name | LUMIX G VARIO 12-60 mm / F3.5-5.6 ASPH. / POWER O.I.S. |
Lens Construction | 11 elements in 9 groups (3 aspherical lenses, 1 ED lens) |
Nano Surface Coating | - |
Mount | Micro Four Thirds mount |
Optical Image Stabilizer | Yes (POWER O.I.S.) |
Focal Length | f=12-60 mm (35 mm camera equivalent 24-120 mm) |
Aperture Type | 7 diaphragm blades / Circular aperture diaphragm |
Maximum Aperture | F3.5 (Wide) - F5.6 (Tele) |
Minimum Aperture | F22 |
Closest Focusing Distance | 0.20 m / 0.66 ft (Wide), 0.25 m / 0.82 ft (Tele) |
Maximum magnification | Approx. 0.27x / 0.54x (35 mm camera equivalent) |
Diagonal Angle of View | 84.05° (Wide) to 20.44° (Tele) |
General - Filter Size | φ58 mm / 2.3 inch |
General - Max. Diameter | φ66.0 mm / 2.6 inch |
General - Overall Length | Approx. 71 mm (from the tip of the lens to the base side of the lens mount) |
General - Weight [g] | Approx. 210 g (excluding lens cap, lens rear cap and lens hood) |
General - Weight [oz] | Approx. 7.41 oz (excluding lens cap, lens rear cap and lens hood) |
