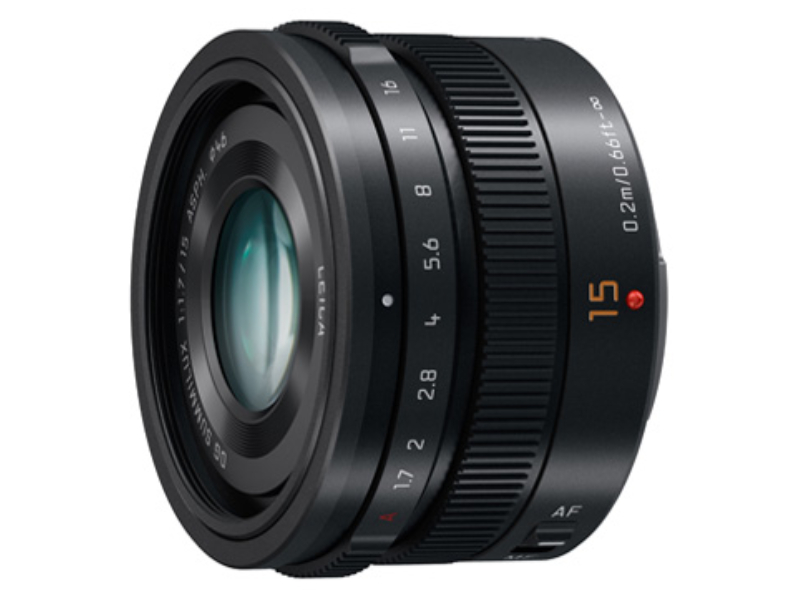

Panasonic Leica Dg Summilux Fixed Focal Length Lens - HX015
You may also like
LEICA DG SUMMILUX Fixed Focal Length Lens
- 15 mm (35 mm equivalent: 30 mm)
- F1.7 ASPH
- Micro Four Thirds Standard
F1.7 High Speed LEICA DG SUMMILUX Lens
The LEICA DG SUMMILUX 15 mm / F1.7 ASPH. allows you to capture supreme snapshots with beautiful defocus features produced by F1.7 high speed. Certified with the name of world-renowned LEICA, exceptionally high image quality is guaranteed. The new lens system is comprised of 9 elements in 7 groups with 3 aspherical lenses, which suppress spherical aberration and distortion, in a very compact lens unit.
High-Precision, High-Speed AF
Incorporating a stepping motor makes the focusing action of this lens capable of smooth, silent operation for both photo and video recording. Compared to Phase Difference AF, Contrast AF boasts higher accuracy especially when shooting with a bright lens that has a small F value. This lens takes full advantage of the camera's high-speed AF.
Aperture Ring Control / Metal Finish Design
The aperture ring allows for easy, intuitive operation. The sophisticated metal design, including the hood, deserves to bear the prestigious LEICA name. The metal mount is durable enough for repeated lens exchanges.
Nano Surface Coating
Panasonic's Nano Surface Coating technology minimizes reflection at the entire visual light range (380 nm - 780 nm) by applying the extra-low refractive index coating with nano-sized structure on the surface of the lens. It results in super clear pictures with dramatic reduction of ghost and flare.
H-X015
9 elements in 7 groups • 3 aspherical lenses
H-X015
| Features | |
|---|---|
| Lens Construction | 9 elements in 7 groups (3 aspherical lenses) |
| Nano Surface Coating | Yes |
| Mount | Micro Four Thirds mount |
| Optical Image Stabilizer | No |
| Focal Length | f=15 mm (35 mm camera equivalent: 30 mm) |
| Aperture Type | 7 diaphragm blades / Circular aperture diaphragm |
| Maximum Aperture | F1.7 |
| Minimum Aperture | F16 |
| Closest Focusing Distance | 0.2 m / 0.66 ft |
| Maximum magnification | Approx. 0.1x / 0.2x (35 mm camera equivalent) |
| General | |
| Diagonal Angle of View | 72° |
| Filter Size | φ46 mm / 1.81 in |
| Max. Diameter | φ57.5 mm / 2.26 in |
| Overall Length | Approx. 36 mm / 1.42 in (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 115 g (excluding lens cap, lens rear cap and lens hood) Approx. 4.06 oz (excluding lens cap, lens rear cap and lens hood) |
| Standard accessories | |
| Standard Accessories | Lens cap, Lens hood, Lens rear cap, Lens storage bag, Bayonet cover (tentative name) |
